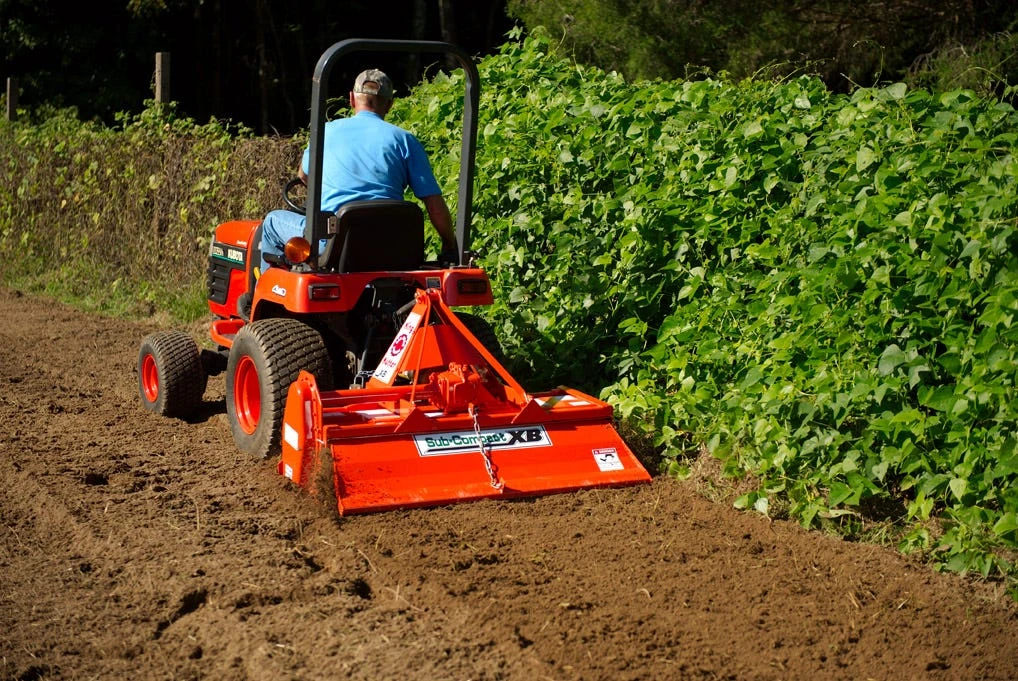

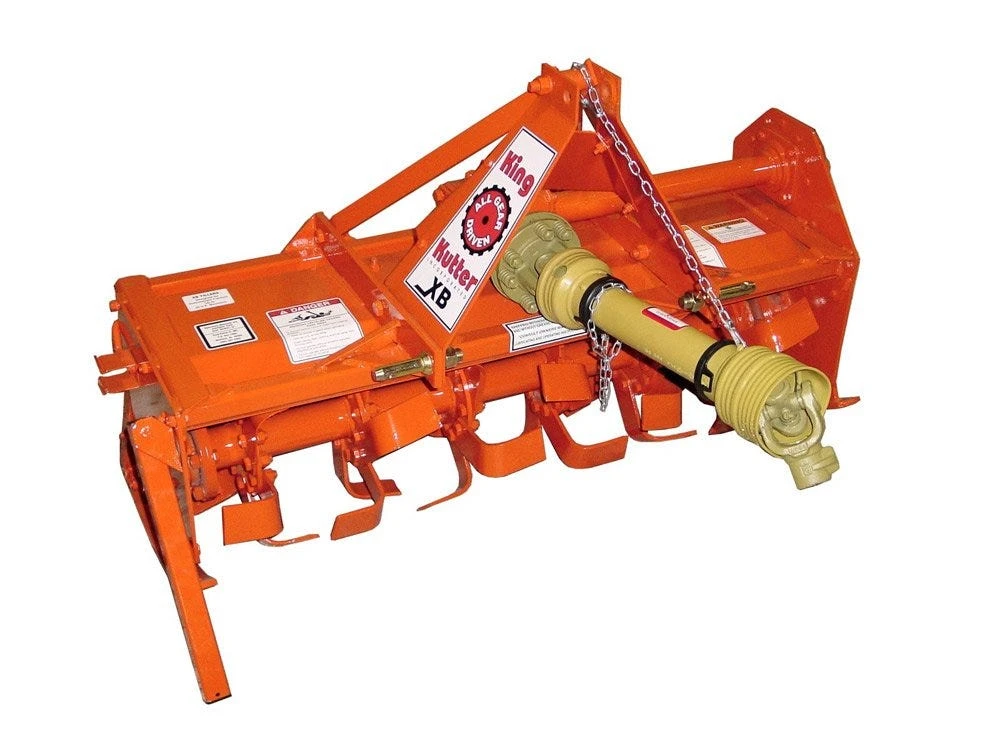

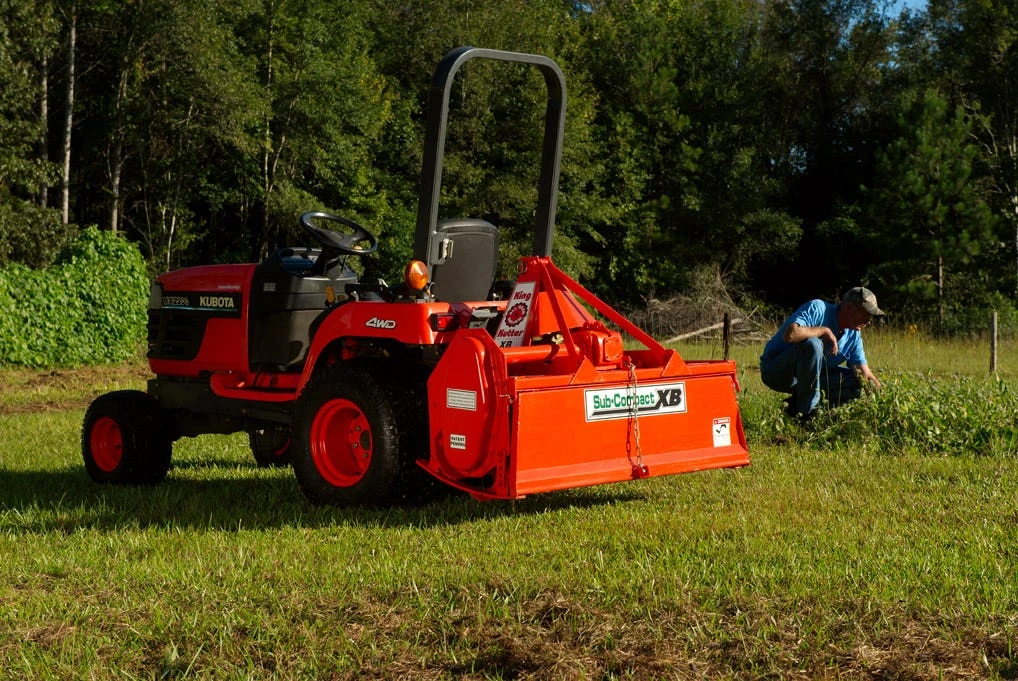

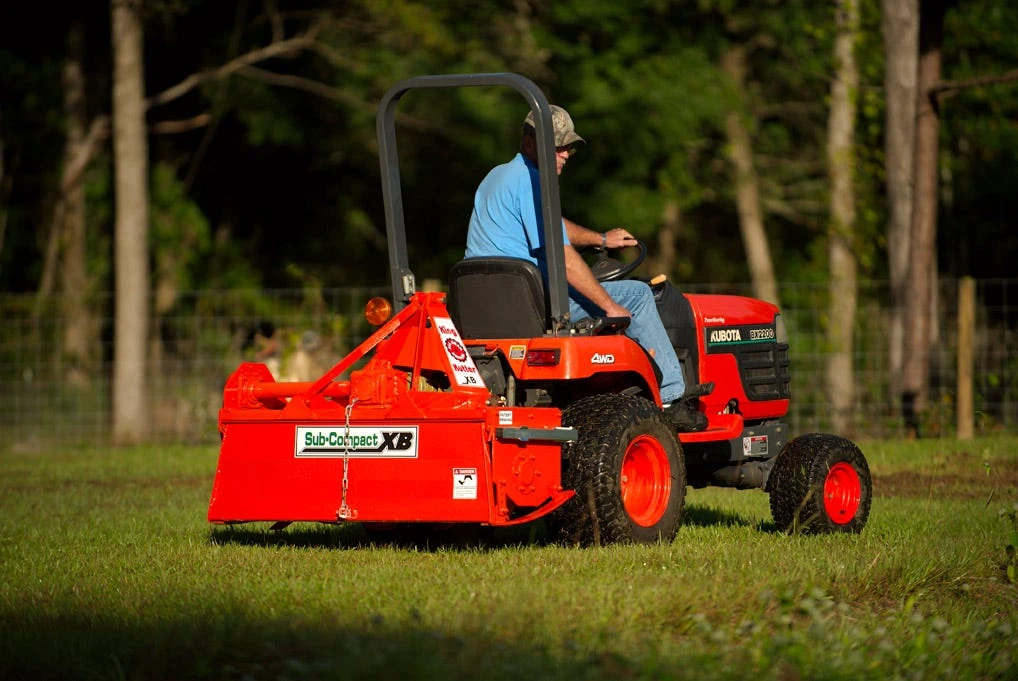

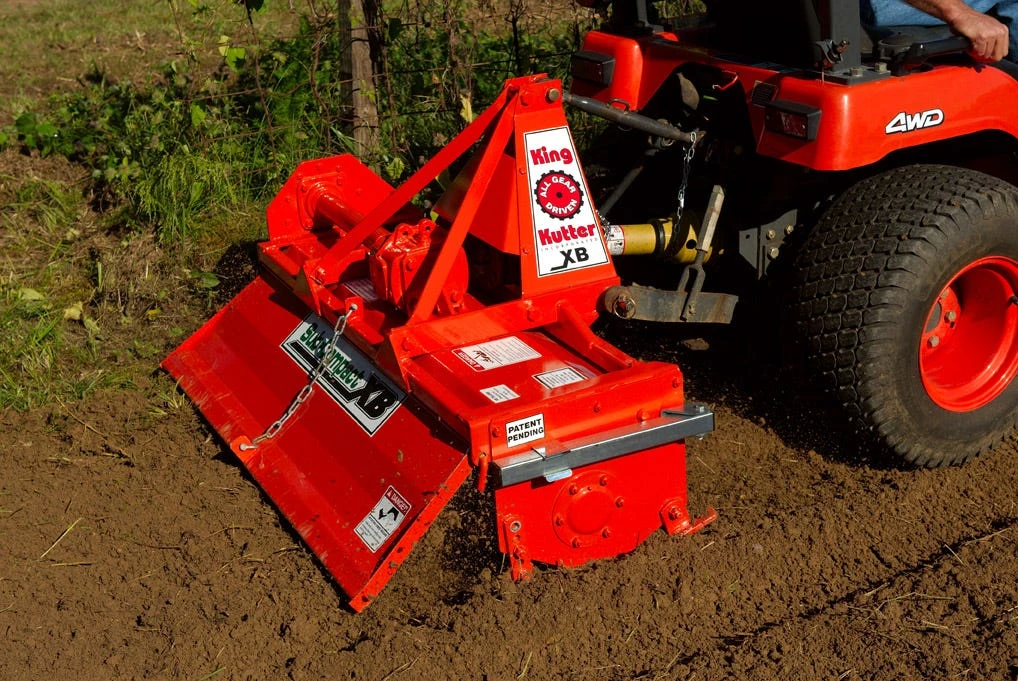

King Kutter 4′ Tiller, Orange – TG-48-XB-0 – Tillers

KING KUTTER’S GEAR DRIVEN XB-TILLER is a quality constructed tiller that is built to last. The adjustable skid shoes control the cutting depth while the rear shield controls the soil mix. Each tiller is equipped with a slip clutch to protect the cast iron gear driven center gear box and the gear driven side gear box. This unit has a 48″ cutting width and is designed for sub-compact tractors up to 25 H.P.

Product Features:

• Limited CAT. 1 Hitch
• Slip Clutch Protected Drive Line
• 6 Tines Per Flange
• Adjustable Skid Shoes
• Cast Iron Center Gearbox
• Gear Driven Side Gearbox
• Parking Stand For Storing
• 18 to 25 Horse Power

Specifications:

Model:	TG-48-XB
PTO Speed Required	540
Tractor HP Range	Up to 25 HP
Approx. Weight	489 lbs.
PERFORMANCE
Working Width	48″
Max. Tilling Depth	6.5″
Rotor Shaft Speed (RPM)	250@544
Gearbox Protection	Slip Clutch
CONSTRUCTION
Rotor Drive Type	Gear
No. of Flanges	6
No. of Tines per Flange	6
Hitch	Limited Cat I
Input Drive Line Category	ASAE Cat. 4
Tine Type	L shaped
Tine Spacing	7.5″
